FEATURES
- Caters effectively to a wide range of production processes ? it is also the world’s fastest in its class*
- The “1 head solution” aims to deliver an ideal mounter that provides both high speed and versatility!
- Wide support capability turns the concept of “Limitless EXpansion” into a reality!
- Numerous functions to support high-quality mounting are included as standard features.
- Feeders and supply devices offering a high degree of freedom
- *Components mounting speed (CPH) for a surface mounter with the 2-beam, 2-head layout. Based on Yamaha survey as at May 2014.
SPECIFICATIONS

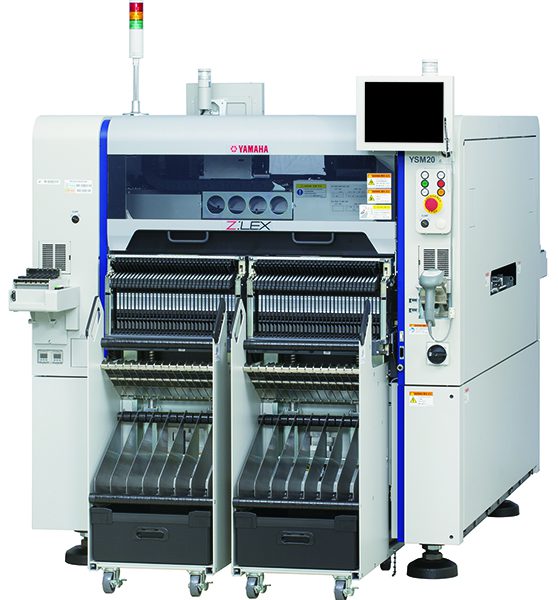

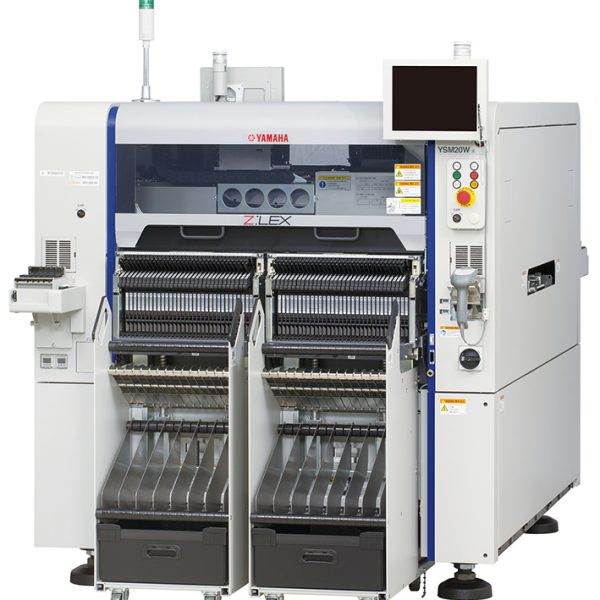

YSM20 | YSM20W | |
Applicable PCB | Dual stage (only for X axis 2-beam specs.) | Single lane |
1 PCB conveyance : L810 x W490 to L50 x W50 | L810 x W742 to L50 x W50 | |
2 PCB conveyance : L380 x W490 to L50 x W50 | Dual lane (only for X axis 2-beam specs.) | |
Single lane | L810 x W356 to L50 x W50 | |
L810 x W490 to L50 x W50 | ||
Dual lane (only for X axis 2-beam specs.) | ||
L810 x W230 to L50 x W50 | ||
Mounting capability | X axis 2-beam : High-speed multi-purpose | X axis 2-beam : High-speed multi-purpose |
(HM: High-speed Multi) head x 2 | (HM: High-speed Multi) head x 2 | |
90,000CPH (under optimum conditions as defined by Yamaha Motor) | 80,000CPH (under optimum conditions as defined by Yamaha Motor) | |
Mounting accuracy | +/-0.035mm (+/-0.025mm) Cpk≧1.0 (3σ) | |
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | ||
Applicable components | High-speed multi-purpose (HM: High-speed Multi) head x 2 : 03015 to 45 x 45mm L100mm, Height 15mm or less | |
Note : Multi-camera (option) may be needed in some cases due to part height and part size. | ||
Odd-shaped components (FM: Flexible Multi) head : 03015 to 55 x 55mm L100mm, Height 28mm or less | ||
Number of component types | Fixed plate : Max.140 types (conversion for 8mm tape feeder) | |
Feeder carriage exchange : Max.128 types (conversion for 8mm tape feeder) | ||
Trays for 30 types (fixed) and 10 types (carriage) | ||
Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
Air supply source | 0.45MPa or more, in clean, dry state | |
External dimension (excluding projections) | L 1,374 x W 1,857 x H1,445mm | L 1,374 x W 2,110 x H1,445mm |
Weight | Approx. 2,050 kg | Approx. 2,500 kg |
YSM20 | YSM20W | |
Applicable PCB | Dual stage (only for X axis 2-beam specs.) | Single lane |
1 PCB conveyance : L810 x W490 to L50 x W50 | L810 x W742 to L50 x W50 | |
2 PCB conveyance : L380 x W490 to L50 x W50 | Dual lane (only for X axis 2-beam specs.) | |
Single lane | L810 x W356 to L50 x W50 | |
L810 x W490 to L50 x W50 | ||
Dual lane (only for X axis 2-beam specs.) | ||
L810 x W230 to L50 x W50 | ||
Mounting capability | X axis 2-beam : High-speed multi-purpose | X axis 2-beam : High-speed multi-purpose |
(HM: High-speed Multi) head x 2 | (HM: High-speed Multi) head x 2 | |
90,000CPH (under optimum conditions as defined by Yamaha Motor) | 80,000CPH (under optimum conditions as defined by Yamaha Motor) | |
Mounting accuracy | +/-0.035mm (+/-0.025mm) Cpk≧1.0 (3σ) | |
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | ||
Applicable components | High-speed multi-purpose (HM: High-speed Multi) head x 2 : 03015 to 45 x 45mm L100mm, Height 15mm or less | |
Note : Multi-camera (option) may be needed in some cases due to part height and part size. | ||
Odd-shaped components (FM: Flexible Multi) head : 03015 to 55 x 55mm L100mm, Height 28mm or less | ||
Number of component types | Fixed plate : Max.140 types (conversion for 8mm tape feeder) | |
Feeder carriage exchange : Max.128 types (conversion for 8mm tape feeder) | ||
Trays for 30 types (fixed) and 10 types (carriage) | ||
Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
Air supply source | 0.45MPa or more, in clean, dry state | |
External dimension (excluding projections) | L 1,374 x W 1,857 x H1,445mm | L 1,374 x W 2,110 x H1,445mm |
Weight | Approx. 2,050 kg | Approx. 2,500 kg |
