Probing Capability

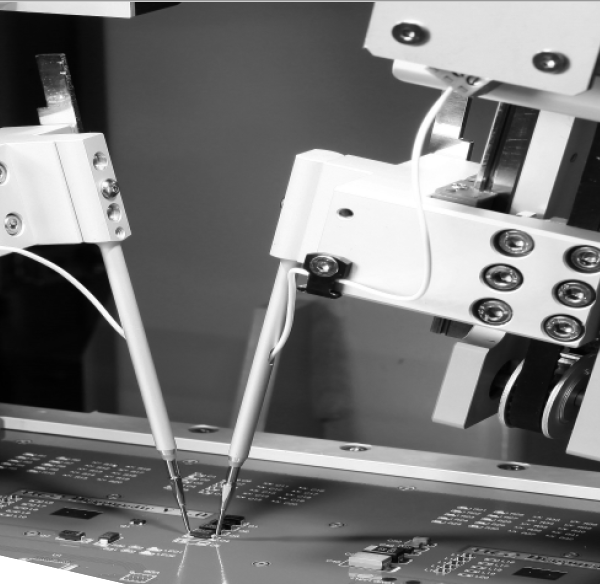

| Flying Probe Heads | 2 (Dual) |
| UUT Probing | Single Side |
| Min Contact Pad | +/- 150 microns (0.15mm) |
| Min Contact Pitch | +/- 500 microns (0.5mm) |
| Component Max Height | 40mm |
| Test Re-try | Programmable |
| Probe Impact Depth | Programmable |
Electrical Requirement
| Input Voltage Range | 200~240 Vac |
| Input Frequency Range | 50~60Hz |
Measuremennt Capability
| Resistor Range | 0.1Ω ~ 100MΩ |
| Capacitor Range | 1pF ~ 10mF |
| Inductance Range | 100nH ~ 5H |
| Diode Range | 0V ~ 10V |
| FET | Diode and Resistor Test |
| Photocoupler | Diode and Resistor Test |
| DC Voltage Range | 100mV ~ 300V |
| Output Voltage | 0.00 V ~ 20.0 V Measurement |
| Output Current | 0-8 V/3A or 8-20 V/1.5A |
| Component Height Measurement | Maximum 40mm |
System controller
| Operating System | Window 10 / 64 bit |
| Monitor | TK-2 24 inch |
| TK-2X / TK-2R 27 inch | |
| UPS | included |
| PC | included |
| TK Multi-Function Unit | included |
| Motion Controller | included |
Testable Board Specification / Footprint and Weight
| TK2 | TK2X | TK2R | |
| Max. Board Size | 380x240mm | 440x470mm | 670x670mm |
| Board Thickness | Max 4.5 T | Max 8.0 T | Max 8.0 T |
| Weight | 750KG | 850KG | 950KG |
| Footprint | 1200x1100x1700mm | 1350x1350x1720mm | 1600x1500x1750mm |
