BGA Rework System ZM-R730A – for Large Size PCB

ZM-R730A Rework System – for Large Size PCB

• Stable and Uniform Hot Air Heating System

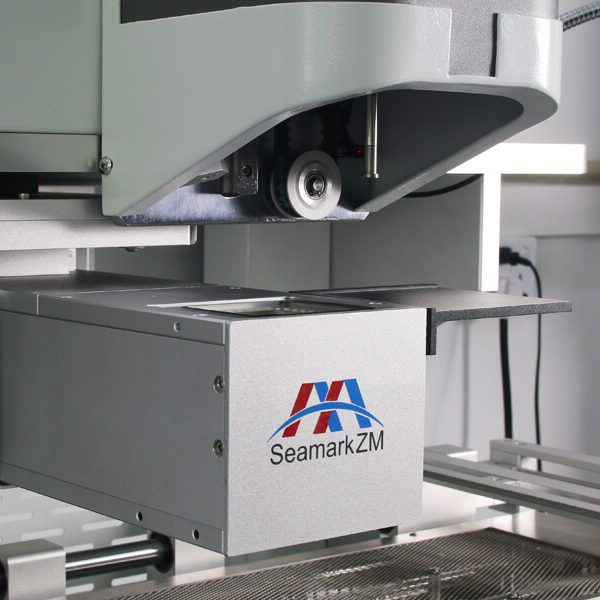

• Lower Heater Adjustable(Height Moving Range 3CM)
• Ceramic honeycomb Infrared Preheater(Left/ Right Moving Range 30 CM)

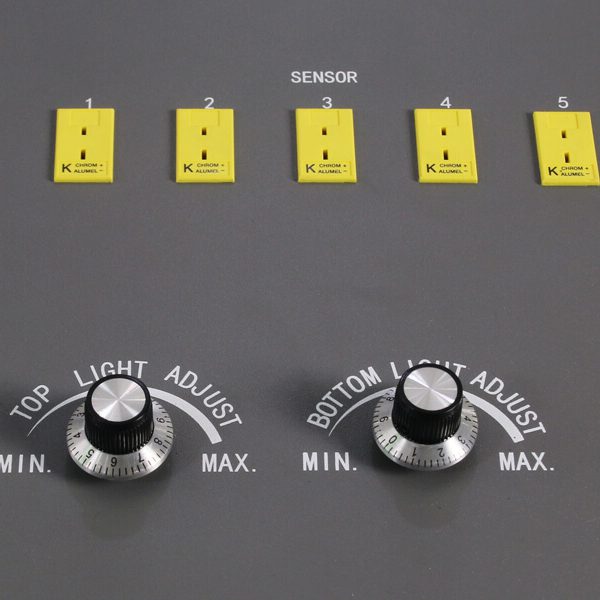

• High-Precision PID Temperature Control System(5 K-type sensor, 10 temperature zone control )
• High-Precision Optical Alignment System with Industrial High-Definition CCD (2MP)
• High-Resolution Touch Screen HMI Interface
• Automatic Placement, Desoldering
• Built-In Pressure Testing Device To Protects The PCB
• Real-Time Temperature Monitoring and Over-Temperature Protection.

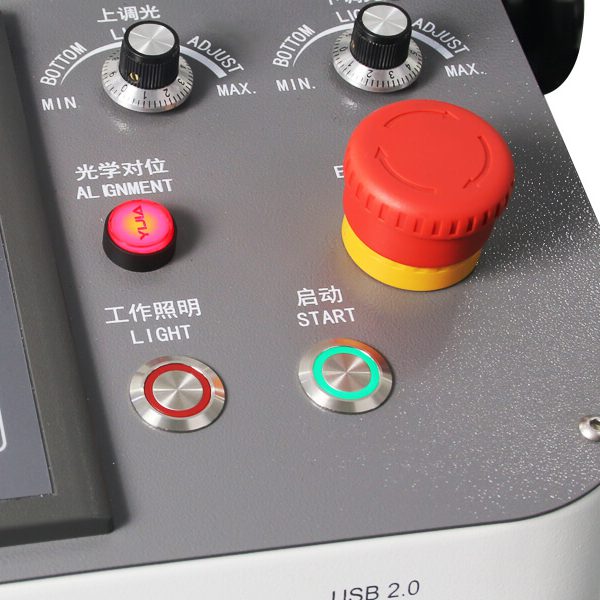

• Emergency Stop Function
• Add a side camera, more clearly observe the rework process(Optional)

Application

Suitable for Normal SMD(BGA, QFP etc.) & Micro-SMD Components Repair, Max. 80mm x 80mm, Min. 0.5mm * 0.5mm IC. PCB motherboard support Max. 620mm x 520mm

Delivery time 2 weeks
