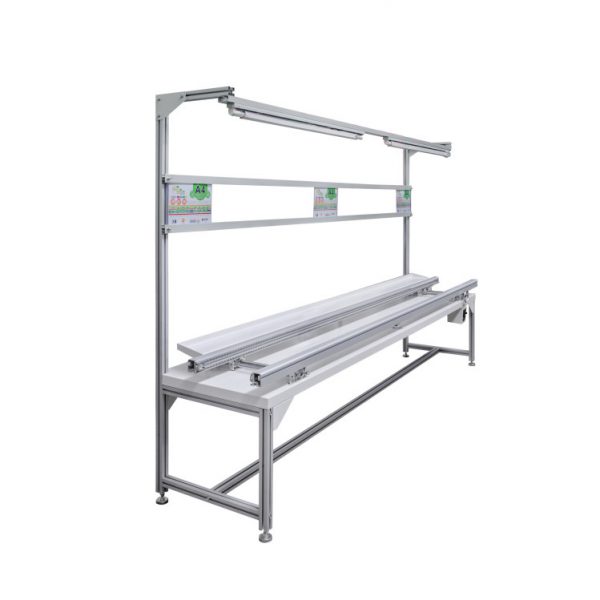

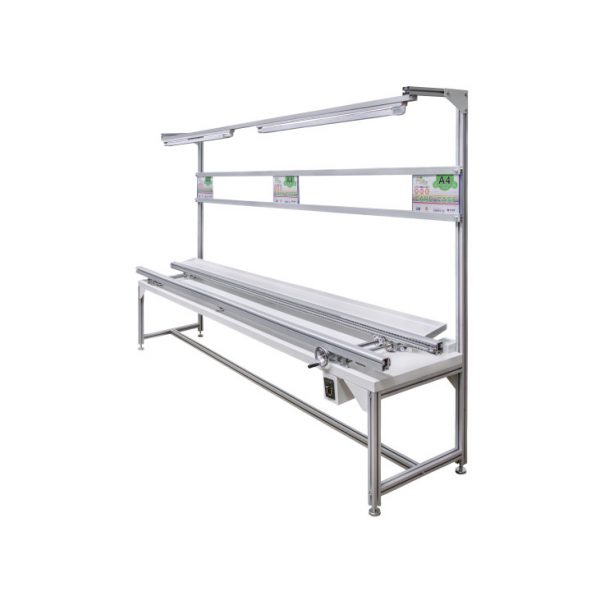

DIP line plugin line 3m PCB assembly line plug-in line

Code: N/A

Call to us

SunzonTech PCB assembly line DIP line plugin line – It will be suitable for many kinds of PCB assembly line. We use strong material for whole PCB assembly line body. All parts using in PCB assembly line DIP line are famous brand and good quality. We have so many years in designing such kinds of PCB assembly line, so all details are reaching perfect. If you have any thoughts for it, you can also join our work of design to make it more perfect.

Delivery time 2 weeks

Hotline: +84 769 116 968 sales@smt-vn.com

Chia sẻ

Amount

Description
Reviews (0)

No.	Items	Specifications and Materials	Q’ty
1	PCB assembly line Automatic plug-in line	Specification: (L)3000(W)600(H) 1950±30㎜ Workbench high: 750±30MM；	3m
2	Fuselage structure	Plug-in line adjustable width range: 50-350mm Fuselage bracket is made of 4040 aluminum materials, Guide rail adopts 5156 high strength special aluminum material; Lamp holder is made of 4040 aluminum material; The light adopts 2550 light; The table is made of 2mm thick steel plate, Transmission chain adopts R35 plastic.	3m
3	Drive system	The transmission part adopts Taiwan “VTV” 60W conjoined motor with governor, the speed is adjustable from 0 to 3M/MIN	1unit
4	Lighting system	LED “Lv Shi” brand single bracket with cover, equipped with LED “Foshan” brand lamp tube,	2units
5	Fittings	The craft holder is made of 25×14 “H” aluminum, each station is equipped with a set of A4 rubber sleeve and the size is 300×240mm (A4 paper shall prevail), can free slip, one set per meter;	2units
		The parts are made of 1.8mm thick steel plate, and the surface is sprayed.	3m
		The drive sprocket, drive screw and drive shaft are all use high-quality components	1unit
