The XPF is a high speed chip shooter and a multi-purpose mounter with multiple functions available. The XPF can also be used as a dispensing machine. By using the Dynamic head exchange which is the worlds first automatic head exchange system while the machine is operating, it is now possible to setup a line using only one type of machine, the XPF, instead of using several different machines equipped with different functions. The newest addition to the XPF Series is the XPF-W. It has all the same features as the standard machine but can now accomodate a PCB up to 20″ X 27″ without increasing line length.

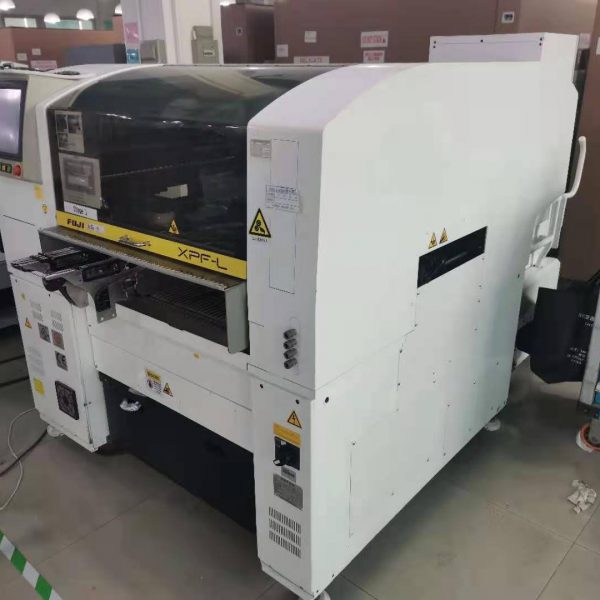

FUJI XPF-L Specification:
The XPF is the world’s first machine to feature dynamic head exchange.
The machine can switch between a high-speed placing head and a multi-purpose head automatically during production to ensure that the most efficient head for the current task is being used.
This includes the ability to switch to a glue head, meaning that glue application and part placement can be performed at the same machine.
Part Size:
01005 to 68x68mm Depending on Head Type
Speed:
* Revolver Head: 25,000 cph
* Single Nozzle: 9,000 cph
* M4 Auto Tool: Up to 10,500 cph
* Glue Tool: 0.2 sec/shot
PCB loading time: 1.8 sec
PCB size (LXW): Up to 457 x 356 mm
Thickness 0.4 (0.3) to 5.0 mm
Machine Dimensions:
L: 1,500 mm, W: 1,607.5 mm, H: 1,419.5 mm
Machine body XPF-L: 1,500 kg
MFU-40: Approx. 240 kg (with W8 feeders loaded)
BTU-AII: Approx. 120 kg, BTU-B: Approx. 15 kg, MTU-AII: Approx. 615 kg (with trays/feeders loaded)
Feature :
1.Applies two gantries equipped with 10 spindles per head as well as new flying vision.
2.The highest speed among the same class component placers,placement accuracy correction system(head offset,C/V offset etc.).
3.It is applicable to 0402-14mm(H=12mm)ICs.
4.Reinforced its applicability to odd shaped parts by applying a ß-staged light system.
5.Dual Lane System:PCB Loading Time of “ZERO” Maximiaes actual productivity by minimizing the PCB transfer time by adopting a first-in-first-out type shuttle inlet conveyor.
6.It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders.
7.It is designed to be compatible with SM series pneumatic feeders.
it maximizes the customer’s operational convenience.
