L1500 stencil printer

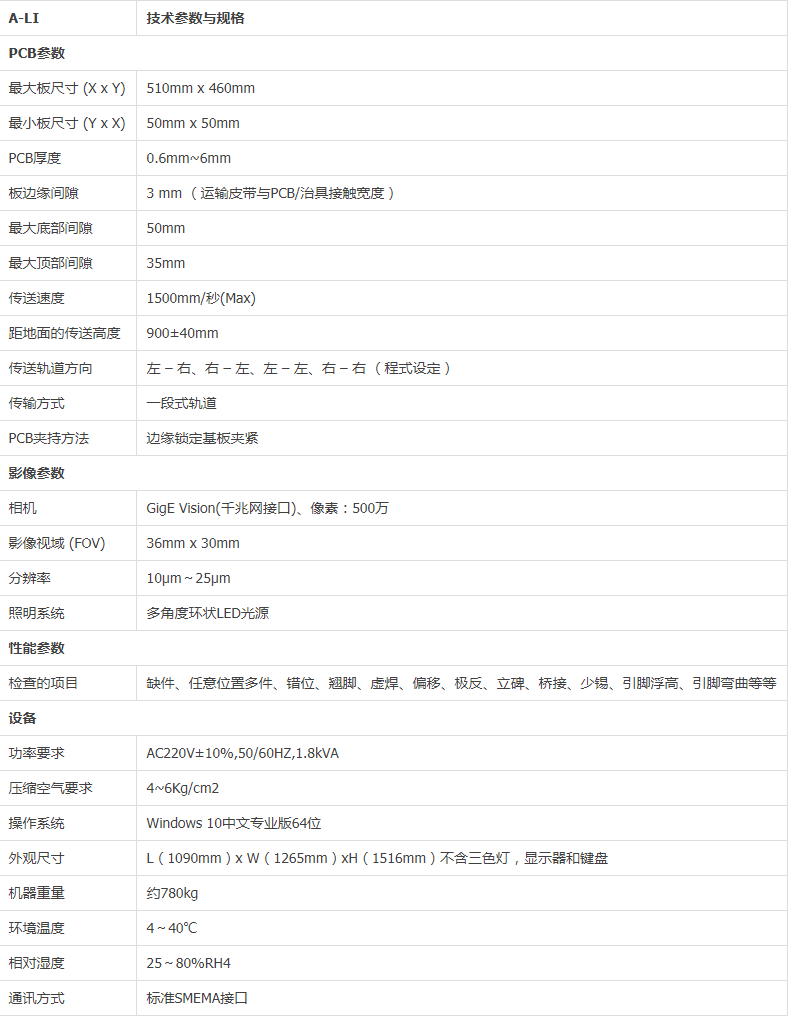

1. Drive using AC servo system, screw guide combination

CCD X, Y direction of the movement of precision ball screw linear guide with high-speed AC servo motor combination to ensure high-speed precision detection capabilities, detection speed, detection rate, stability and strong.

2.PCB positioning system

For the different size of the PCB board, the transport track width can be adjusted, the use of stepper motor drive, screw guide combination, fast and accurate positioning width; stepper motor drive, programmable to achieve different transport speed and action; adaptive PCB thickness , Pneumatic automatically to the upper edge of the clamping process is more simple.

3. Image and optical system

The product is equipped with ultra-high resolution industrial-grade color digital camera, optional 10μm ~ 25μm ultra-high resolution. Telephoto lens, high resolution, ultra-wide depth of field, ultra-low distortion and unique parallel light design, the circuit board tilt and high components can be clearly imaging, and no strabismus. Multi-angle ring LED light source, AOI dedicated light source, RGB three-color high-brightness LED array made of different angles and different colors of objects, to highlight the three-dimensional information objects. Detection of PCB board leakage, wrong pieces, skew, missed welding, Weld, tin, Wuxi, bridge, polarity and other defects.

4.SPC (statistical process control) system

The SPC system provides the most detailed and perfect database-based SPC system. The SPC system can classify, analyze and analyze the test results separately, and provide the SPC statistical analysis system in the form of pie chart histogram to facilitate the process analysis and quality improvement The Maintenance workstations and SPC reports fully support flat touch operation, allowing users to more easily use.

5. High-speed full-board image template matching detection algorithm

The rise of GPU parallel computing is due to the arrival of large data age, and the traditional multi-CPU parallel computing has been far from being able to meet the needs of large data. The biggest feature of the GPU is that it has a super-computing core, often tens of thousands of cores, greatly reducing the image processing time. So that the whole board image template to match the reality, the product can be used to assist in the detection of any position on the PCB board, tin beads, gold finger scratches and PCB board bad and so on.

6. Full board image full memory storage mode

Through the real-time preview of the way to adjust the coordinates of the entire board position, the CAD data quickly with the entire board image corresponding to the user in the adjustment of CAD data and circuit board images, more intuitive, easy and convenient. Host installation Windows 10 Chinese professional 64-bit, because the real-time access to the entire PCB image, and the whole memory storage, which can be achieved online off-line between the highly efficient off-line programming.

7.SHOPFLOOR output

Software module directly read one-dimensional, two-dimensional bar code, no external bar code gun, real-time output to bar code for the identification of SHOPFLOOR file. For customers to achieve the perfect follow-up SHOPFLOOR integrated management system, laid a solid foundation.
