BGA Rework System ZM-R720/720A BGA/LED SMD

Code: N/A

Call to us

Stable and Uniform Hot Air Heating System
Lower Heater Adjustable

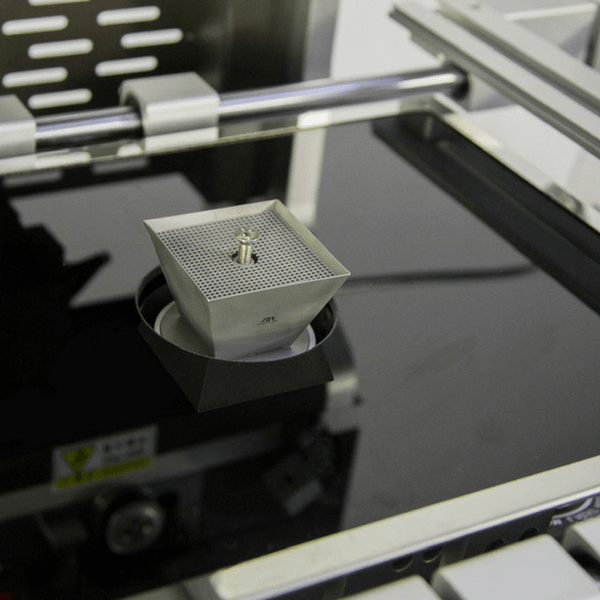

Carbon Fiber Micro-crystalline Infrared Preheater
High-Precision PID Temperature Control System
High-Precision Optical Alignment System with Industrial High-Definition CCD (2MP)
High-Resolution Touch Screen HMI Interface
Automatic Placement, Soldering, Desoldering
Built-In Pressure Testing Device to Protects the PCB
Real-time Temperature Monitoring and Over-Temperature Protection.

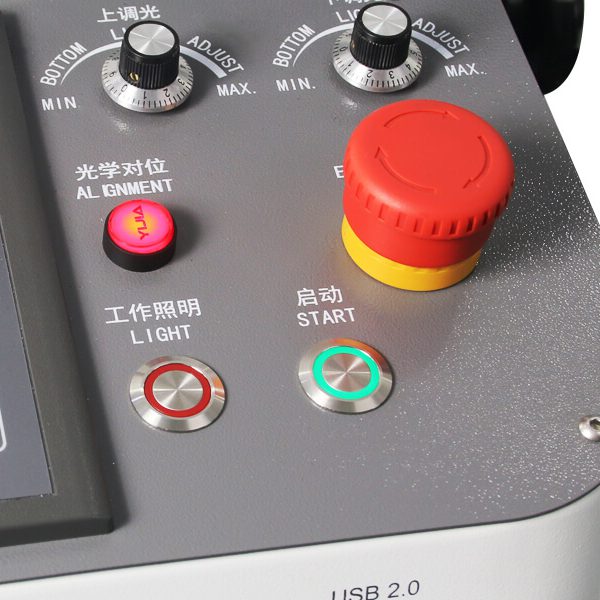

Emergency Stop Function

Delivery time 2 weeks

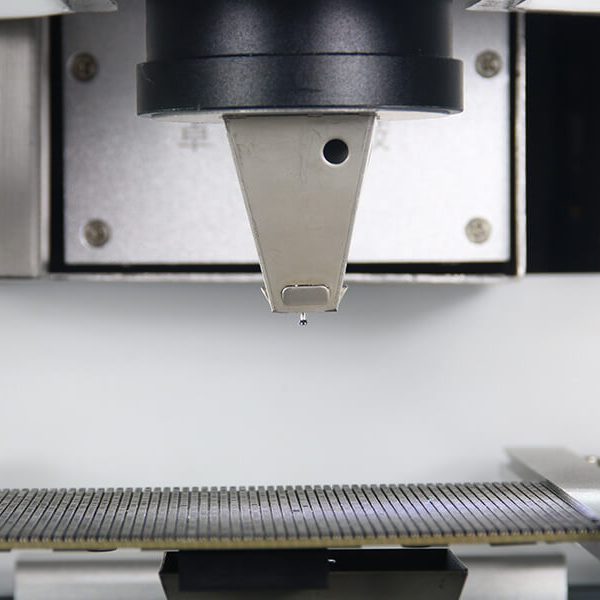

Suitable for Normal SMD(BGA, QFP etc.) & Micro-SMD Components Repair, Support P08 Small pitch LED beads, Min. 0.5mm * 0.5mm IC.

Hotline: +84 769 116 968 sales@smt-vn.com

Chia sẻ

Amount

Technical Parameters

Item	ZM-R720A
Operation Mode	Automatic / Optical /Touch Panel
Voltage/Power	AC220V±10%(110V Optional), 50/60HZ / Top: 1200W, Bottom: 1200W, IR: 3200W
Heating Mode	Top/Bottom Nozzle Hot Air, Bottom Plates Infrared
Temperature Precision	2-3 ℃ (1 Sensor Port)
Preheat Zone	280×380mm
Optical Alignment Precision	0.01MM
CCD Magnification	5X~50X
LCD Display	17〞1080P FHD LCD Display
For PCB Size/Chip Size	PCB Size: 415370MM~66MM / Chip Size: 0.60.6~4040MM
Machine Dimension	L640W630H920 (MM)
Net Weight	71KG
Standard Wooden Packing	Packing Size: L750W700H950 (MM) / G.W: 120KG
