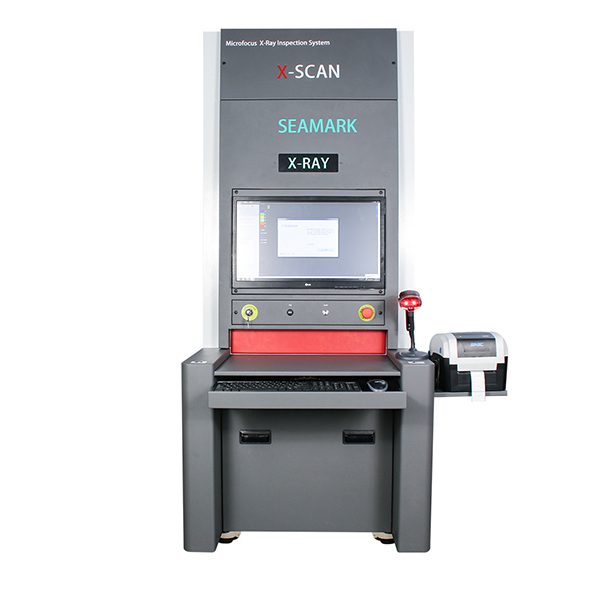

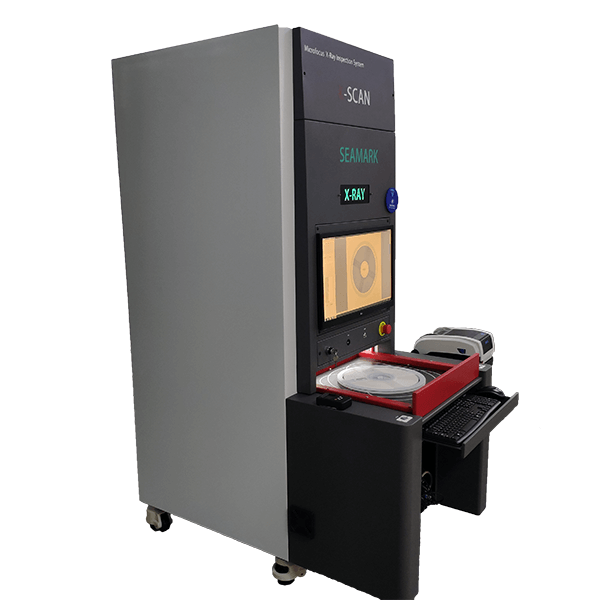

X-1000 X-Ray Component Counter

Code: N/A

Call to us

X-1000 X-Ray Component Counter

7-15 inch reels, Loose or tightly wound components scaning Support

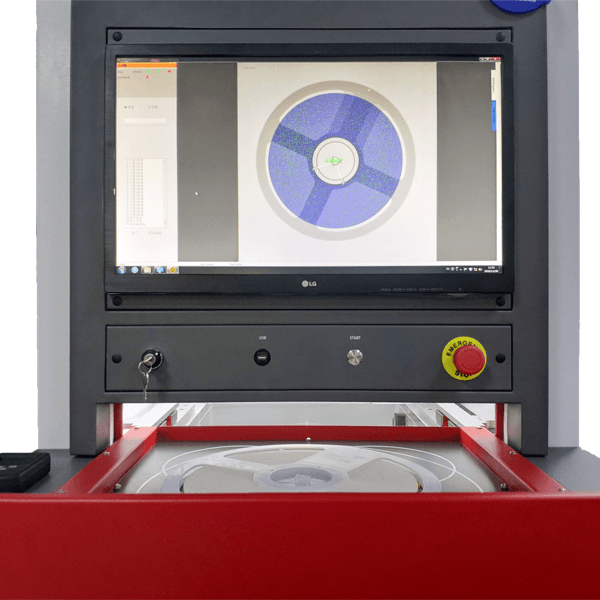

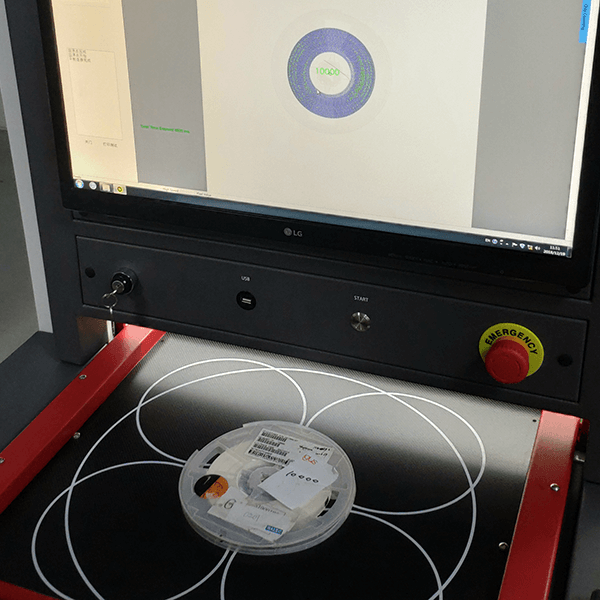

Automatic counting components on reels, belts, ESD bags and in JEDEC trays
Automated counting of unknown components
Fast Counting up to 6 seconds, Easy to use operator interface, accuracy over 99.9%
Cloud based database, No local training necessary
Embedded into all major ERP/MES systems
Barcode scanner and label printer interface
Maintenance free

Delivery time 2 weeks

Hotline: +84 769 116 968 sales@smt-vn.com

Chia sẻ

Amount

Application

Automatic counting resistors, capacitors, inductors, crystals, LED, diodes, transistors, and other multi-pin IC etc.

Please note: Specification are subject to change without notice!

Technical Parameters

Item	Content
Detectable Component	Resistors, capacitors, inductors, crystals, LED, diodes, transistors, and other multi-pin IC etc.
Max Tube Voltage	90KV
Max Tube Current	0.5ma

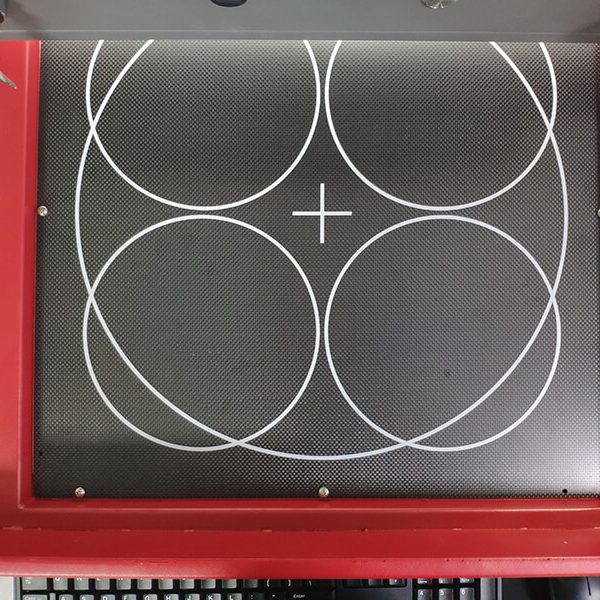

Inspection Area	150-380 mm (7″-15″)
Components Size	Min 01005
Max Number Of Components	50K
Reel & Tray Counting Time	Up to 6 seconds/reel
Counting Accuracy	99.9%
Dimension	1000mm（W)1200mm（D）2550mm（H)
Other Function	Automatic Feeding And Discharging, Automatic Test Mode- Smart Mode
Software	Support For Arbitrary Format Spc Statistics, Images And Results Can Be Saved Automatically
Radiation Leakage	＜ 1 μsv/hr
